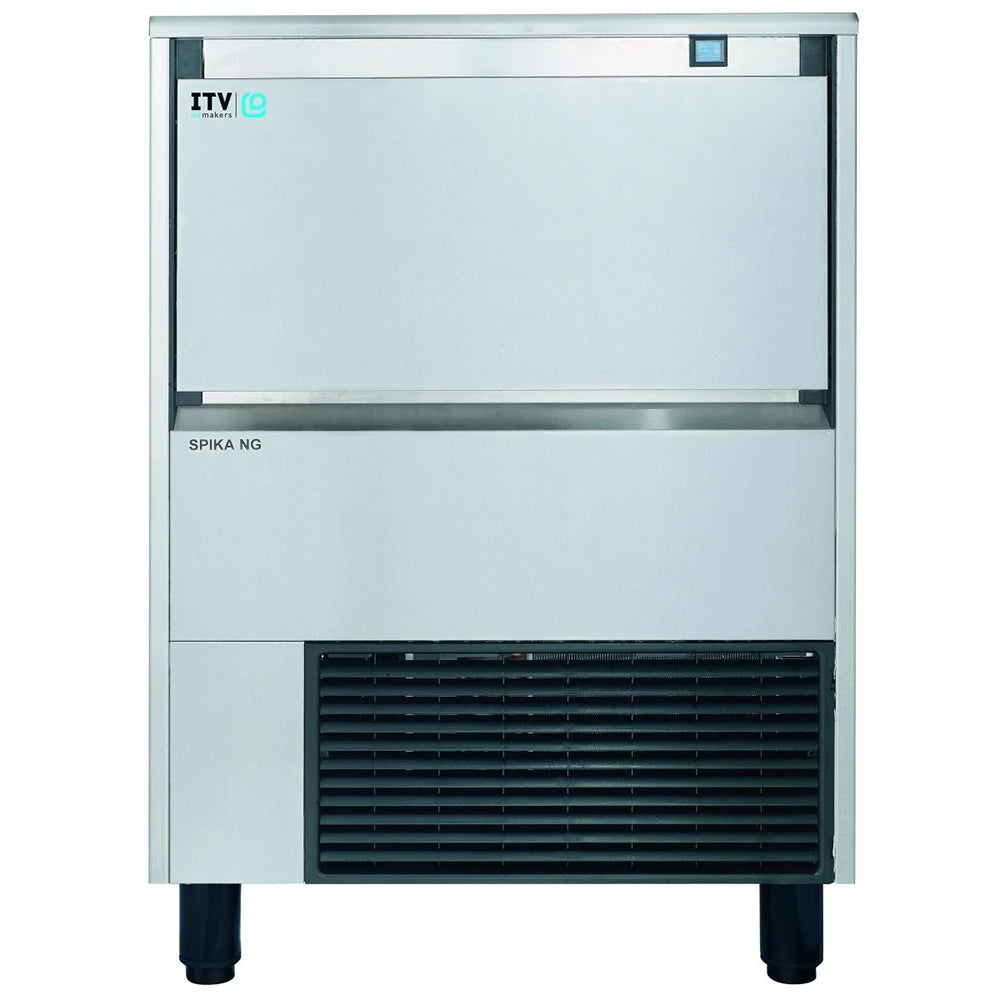

Itv SPIKA NG 230 A1H 26"W Half Cube Undercounter Ice Maker - 223 lbs/day

Great for drive-thrus, small restaurants, and school cafeterias, ITV Ice Makers SPIKA NG 230 A1H half cube undercounter ice maker produces as much as 223 pounds of ice a day, which can be stored in its 77-pound capacity ice bin. It has electronic controls to elevate performance in extreme climates and operates using natural R290 refrigerant. Its front ventilation system and self-contained condenser enable built-in installation beneath a counter, and to avoid deterioration from hard water, its "Never Stop" motor pump doesn't use seals. For quick service and installation access, this unit's panels are removable.

For a durability while matching existing equipment, the ITV Ice Makers SPIKA NG 230 A1H undercounter ice maker is made of stainless steel. It includes stainless steel legs that are adjustable from 4 to 6 inches high and has an LED on/off switch for simple operation. Its cleaning switch circulates water and product descaling without cooling. It works best in ambient temperatures between 41 to 109 degrees Fahrenheit and water temperatures between 41 to 95 degrees Fahrenheit. Overall, this model measures 25⁹⁹/₁₀₀ inches wide by 27⁵⁷/₁₀₀ inches deep by 38²⁹/₁₀₀ inches high.

Product Details

• Half Classic American style ice cubes
• Ice cube size: ⁹/₁₀ in. W x ⁴³/₁₀₀ in. D x 1 ¹/₅₀ in. H
• Daily production capacity: 223 lbs.
• 77-lbs. ice storage capacity
• Self-contained condenser
• Electro mechanic timer and dual switch
• 304 stainless steel construction
• Stainless steel door with opening and damping system
• Smart front ventilation system enables built-in installation of the unit
• Cleaning switch circulates water and descaling product without cooling
• "Never Stop" motor pump doesn't have seals to avoid hard water deterioration
• All panels can be disassembled for simple service and installation
• Electronic controls enhance unit performance while adapting to extreme climates
• Natural R290 refrigerant
• Led on/off switch and PCB mounted at bottom
• Vertical plate evaporator
• Stainless steel legs are adjustable between 4 and 6 in.
• Ambient temperature range: 41 to 109 degrees F
• Water temperature range: 41 to 95 degrees F

Dimensions & Utilities

• 25⁹⁹/₁₀₀ in. W x 27⁵⁷/₁₀₀ in. D x 38²⁹/₁₀₀ in. H
• 14.5 psi (1 bar)/87 psi (6 bar)
• 115 V/60 Hz/1ph

ITV Ice Makers SPIKA NG 230 A1H Specifications

Spec Attribute	Spec Value
Manufacturer	ITV Ice Makers
24 Hr. Production (lb)	223
Bin Capacity (lb)	77
Compressor Type	Air Cooled
Depth (in)	27.56
Drain Type	Gravity
Height (in)	38.76
Hertz	60
Ice Type	Half Cube
Suggested Use	Commercial
Voltage	115
Warranty	3 year parts & labor; additional 2 year parts on compressor & evaporator
Width (in)	25.99
Series	Spika
Phase	1
Product	Undercounter Ice Makers
Product Type	Ice Makers & Bins
Weight	141.00



Spec Sheet
