Description

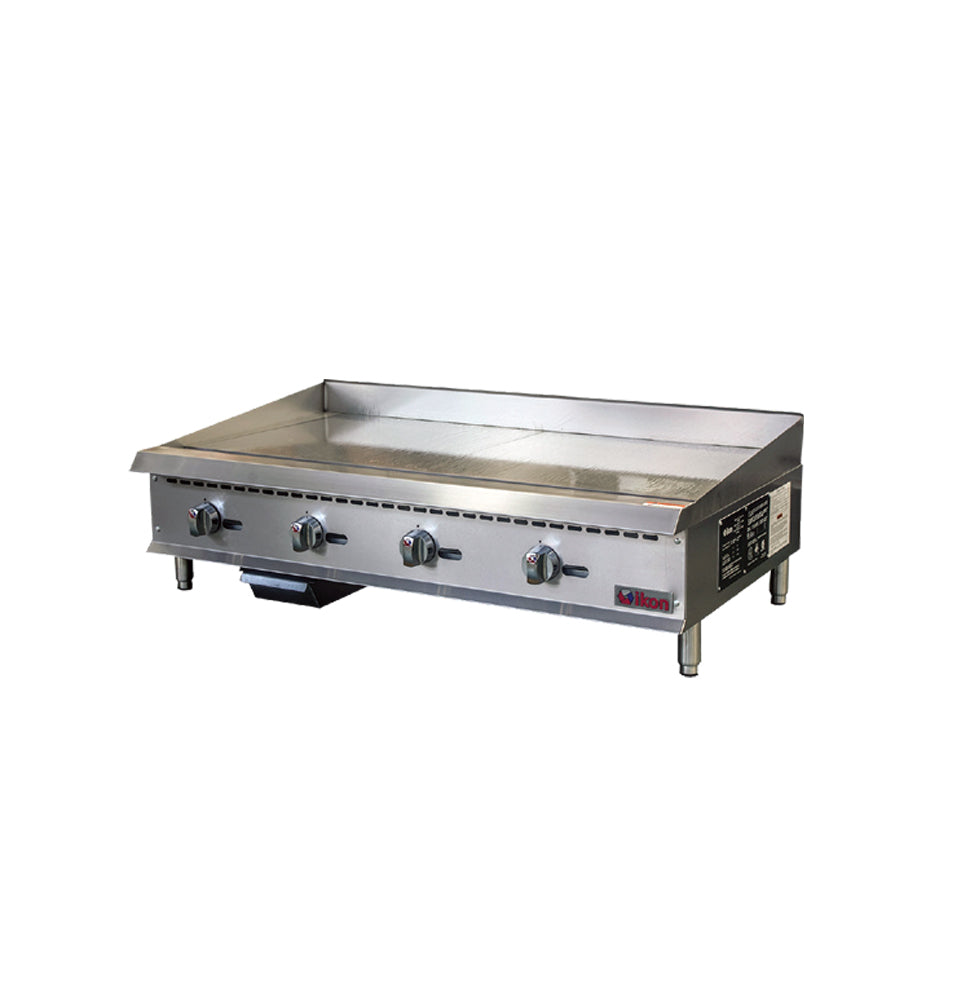

•The Ikon Thermostat Control Griddles are available in 24”, 36”, 48” & 60” widths, the continous 30,000 BTU output per burner provides
even heat to the 1” thick polished steel griddle plate
• Adjustable manual gas controls provide easy and safe operations
• “U” shape burners provide even heat distribution every 12”
• 1” griddle plate
• 30,000 BTU/ burner
• Gas control knob every 12”
• All stainless steel cabinet
• Double wall insulated sides
• Widths: 24”, 36”, 48”, & 60”
• “Cool-to-the-touch” front s/s edge
• Back and side splash guards fully welded to griddle plate
• Flue located on back of unit for ample ventilation
• Adjustable stainless steel legs, non-skid feet
• Easy to remove 3-1/4” grease drawer with “weep hole” and baffle
• Grease trough is standard 4” spatula width
• Griddle is fully serviceable from the front
• Available in Natural gas(NG) or Liquid propane(LP).
A conversion kit is supplied with each unit
Spec Sheet
| Width | 48-59" |
| Depth | 30"-Plus |
| Power Type | Natural Gas |
| BTU | 120K-139K |
| Control Type | Thermostatic |
| Size | 5 |
