Description

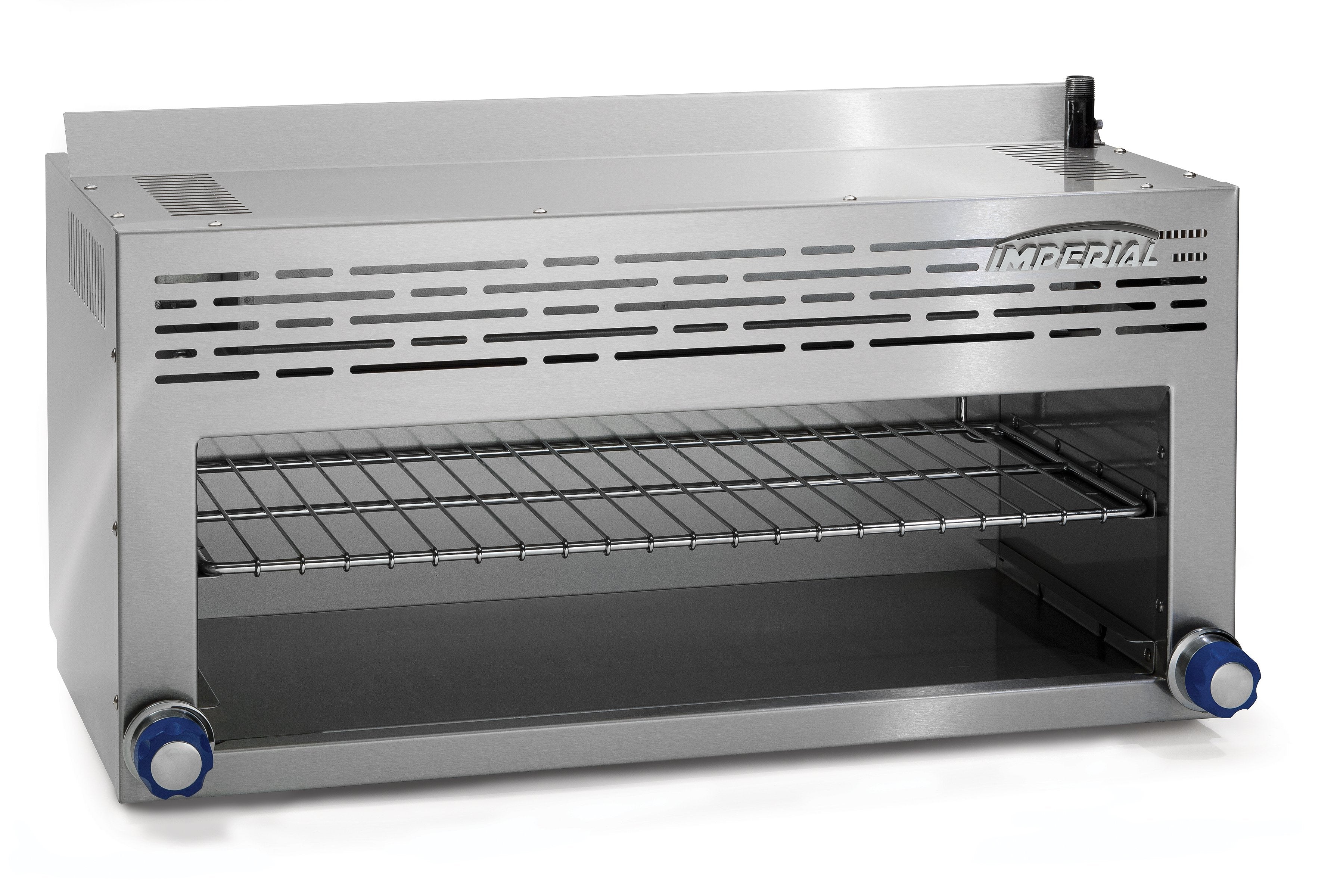

| Model number | ICMA-36 | |
| Power type | Natural Gas | |
| Manifold pressure | 5.0 | |
| Total BTU/hr. | 40,000 (12 KW) | |
| Width | 36" (914 mm) | |
| Installation type | Counter, wall or range mount | |
| Broiler type | Pre-mix atmospheric infra-red | |
| Broiler output | 35,000 BTU/hr. | |
| Protective covering | Over entire burner | |
| Gas controls | 2 controls, both sides | |
| Rack material | Heavy duty and Chrome plated | |
| Rack assembly | Removes for cleaning | |
| Broiler pan | Full width, removable | |
| Wrap material | Stainless steel exterior, except back | |
| Control knobs | Aluminum with Valox™ heat protecting grip | |
| Dimensions | 36" w x 17-3/4" d x 17-1/4" h (914 x 451 x 438 mm) | |
| Legs | Optional 4" (102 mm) leg assembly for countertop installation | |
| Crated dimensions | 38" w x 20" d x 21" h (965 x 508 x 533 mm) | |
| Ship weight | 162 Lbs. (75 Kg) |
Spec Sheet
