Description

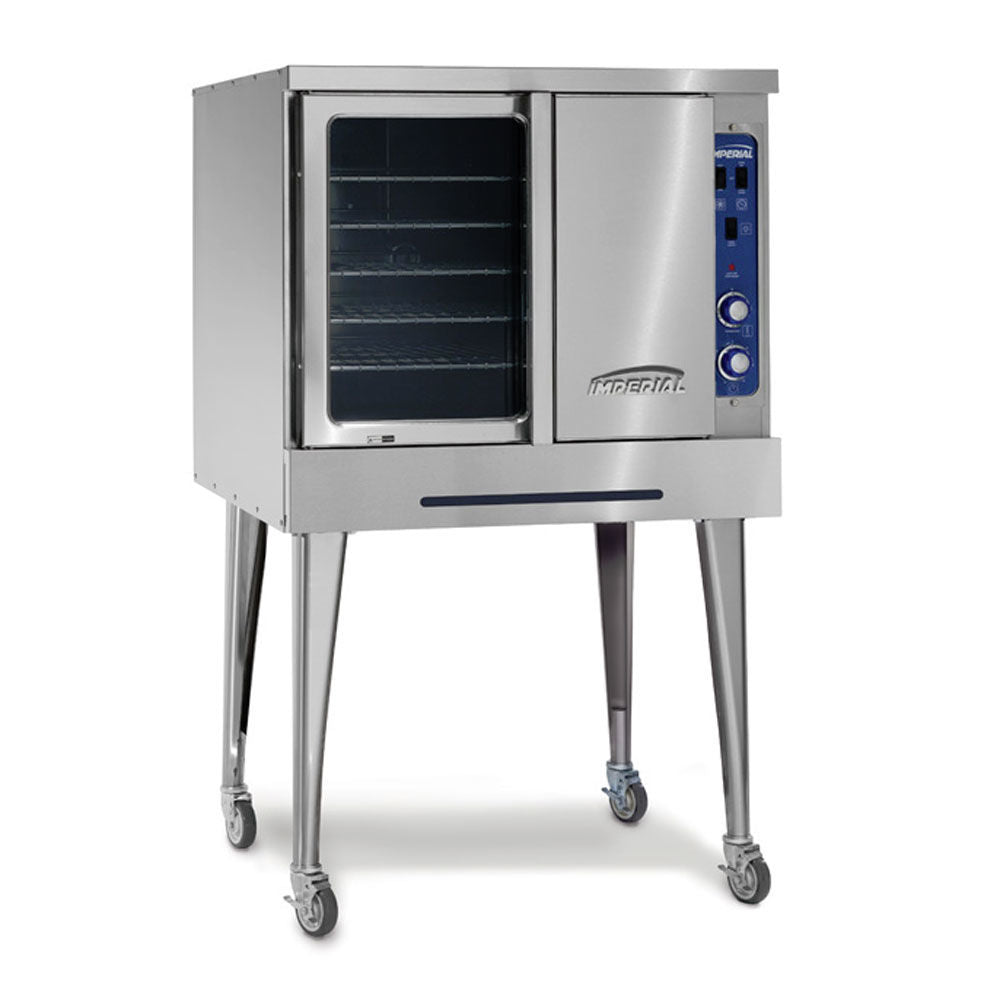

| Model number | ICV-1 | |
| Power type | Liquid Propane |
|
| Manifold pressure | 10.0 | |
| Total BTU/hr. | 70,000 (21 KW) | |
| Width | Standard | |
| Installation type | Floor model | |
| Oven depth | Standard | |
| Burner description | 2 linear burners per oven | |
| Burner BTU/hr. output | 70,000 BTU (21 KW) | |
| Thermostat range | Snap action control | |
| 100% Safety pilot | Yes | |
| Cavity dimensions | 29" x 28-1/4" x 24" (737 x 717 x 610 mm) | |
| Cavity surface | Porcelainized interior | |
| Racks | Heavy duty chrome plated racks, 5 included | |
| Rack guides | Chrome plated, 10 positions | |
| Fan speeds | 2 speeds, low and high | |
| Cool down fan speeds | 2 speeds, low and high | |
| Switch | Remote, centrifugal | |
| Fan motor | 2 speed, 1/2 h.p. 1725/1140 RPM | |
| Motor electric requirements | 120 VAC, 1 ph, 60/50 Hz 9 Amps max. per oven | |
| KW, volts, phase, hertz, amps | 120V 1Ph 60/50 Hz 9 A max | |
| Power cord | 6 ft. (1829 mm), 3 prong plug | |
| Dual opening | 40/60 doors, open simultaneously 130° | |
| One hand operation | Yes | |
| Window | 1 large | |
| Number of bearings | 4 bearings per door | |
| Chassis | "U" channel bolted and welded to oven frame | |
| Gasket | Stainless steel pressure locking | |
| Handle | Full length, cool to the touch aluminum | |
| Handle attachment | Secured top and bottom to the 10 ga stainless steel internal door chassis | |
 |
||
| Manual controls | Standard | |
| Serviceability | 100% serviceable from the oven front, captive fasteners | |
| Fan toggle | 2 speeds for oven and cool down | |
| Light switch | Momentary switch for 2 interior lights | |
| Oven ready indicator | Light off when temperature reached | |
| Thermostat range | 150° to 500°F (66° to 260°C) | |
| Timer | 60 minute manual timer | |
| Second step needed | Audible buzzer signal | |
| Programmable controls | Optional | |
| Cook 'n Hold feature | Optional | |
| Digital Timer | 24 hr. countdown, LED digital display | |
| Fan options | 2 speed | |
| Temperature readout | Fahrenheit or Celsius | |
| Wrap material | Stainless steel exterior, except back | |
| Control knobs | Stainless steel | |
| Dimensions | 38" w x 41-1/2" d x 64" h (965 x 1054 x 1625 mm) | |
| Legs | Stainless steel with adjustable bullet feet | |
| Crated dimensions | 40" x 47-1/2" x 38-1/2" (1016 x 1206 x 978 mm) | |
| Ship weight | 521 (236 Kg) |
