Description

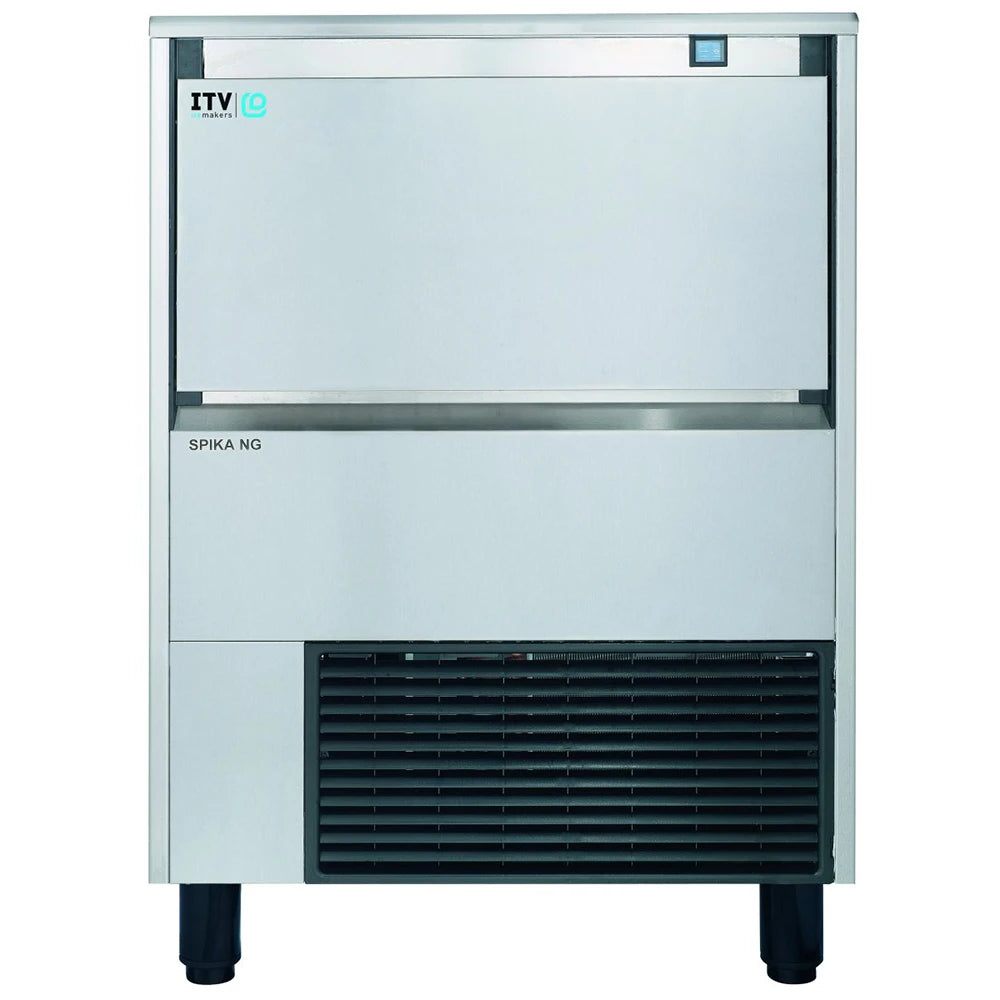

Constructed of 304 stainless steel, the ITV Ice Makers SPIKA NG 160 A1H half cube undercounter ice maker matches existing equipment, is durable, and is simple to wipe clean. It produces 159 pounds of ice a day and stores as much as 44.1 pounds of ice in its connected bin—great for school cafeterias and drive-thrus. Its self-contained condenser enables simple installation and operates with natural R290 refrigerant. To place this machine at a comfortable height, its stainless steel legs are adjustable from four to six inches high.
To optimize performance, the ITV Ice Makers SPIKA NG 160 A1H has electronic controls that are adaptive to extreme climates. It has an LED on/off switch for simple operation, while its cleaning switch circulates water and descaling products without cooling. It works best in ambient temperatures between 41 to 109 degrees Fahrenheit and with water temperatures between 41 to 95 degrees Fahrenheit. Overall, this unit measures 217/100 inches wide by 2343/100 inches deep by 377/100 inches high.
Product Details
- Half Classic American style ice cubes
- 44.1-lbs. ice storage capacity
- Daily production capacity: 159 lbs.
- Ice cube size: 9/10 in. W x 43/100 in. D x 1 1/50 in. H
- Eco-friendly R290 refrigerant
- Vertical plate evaporator
- 304 stainless steel construction
- Strong inox frame and solid machine structure in 4 columns
- Electro mechanic timer
- Self-contained condenser
- Stainless steel legs adjust from 4 to 6 in. high
- LED on/off switch with PCB mounted at bottom
- Cleaning switch circulates water and descaling product without cooling
- Electronic controls enhance performance of machine and adapts it to extreme climates
- Includes scoop
- Ambient temperature range: 41 to 109 degrees F
- Water temperature range: 41 to 95 degrees F
Dimensions & Utilities
- 217/100 in. W x 2343/100 in. D x 377/100 in. H
- 14.5 psi (1 bar)/87 psi (6 bar)
- 115 V/60 Hz/1ph
ITV Ice Makers SPIKA NG 160 A1H Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | ITV Ice Makers |
| 24 Hr. Production (lb) | 159 |
| Bin Capacity (lb) | 44.1 |
| Compressor Type | Air Cooled |
| Depth (in) | 23.43 |
| Drain Type | Gravity |
| Height (in) | 37.07 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3 year parts & labor; additional 2 year parts on compressor & evaporator |
| Width (in) | 21.07 |
| Series | Spika |
| Phase | 1 |
| Product | Undercounter Ice Makers |
| Product Type | Ice Makers & Bins |
| Weight | 106.00 |
