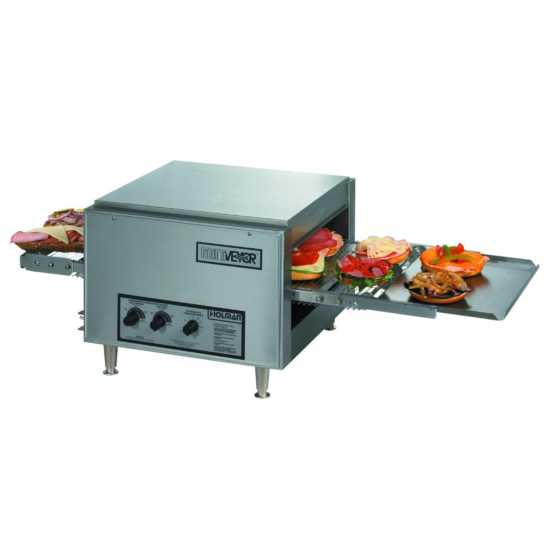

Star 214HX 14" Electric Quartz Heater Miniveyor Conveyor Oven with Analog Controls

Known for Innovation, Technology and Performance, the Star Manufacturing Company is among the largest manufacturers of heavy duty commercial cooking equipment in the world.

Star’s Holman Mini & Proveyor® ovens are designed to cook a variety of menu items such as fresh dough pizza, blanched pizza, subs, cookies, fish and more quickly and easily while preserving cooking space. Quartz infrared heaters provide faster, more consistent heating than traditional heating elements. Elements are located above and below conveyor belt allowing precise even heating of products.

Ovens are constructed of stainless steel. Conveyor belt travels left to right but can be ordered right to left. Single and stacked ovens furnished with 2-1/2” adjustable legs, quartz infrared heat- ers and on/o heat switch for heat control are standard. Product opening adjustable from 1-1/2” to 3”, motors are permanently lubricated and bearings are long lasting te on. Units are UL listed, CSA certi ed and NSF approved.

Standard Features

• High-power quartz infrared elements are located above and below conveyor belt allowing precise even heating of products
• Convection system keeps the conveyor cool-to-the-touch and extends the life of critical components. The forced convection increases productivity by circulating preheated air into the toasting chamber
• Analog controls for conveyor belt speed , top and bottom heat
• Compact design can be stacked two (2) high (210HX & 214HX), or three (3) high 314HX with optional stacking kit
• Product entry and exit openings are adjustable from 1-1/2” to 3” (210HX & 214HX). 314HX is adjustable from 1-1/2” to 4”
• Removable 6-1/2” long extended load/unload area standard
• Removable crumb tray for fast and easy clean-up
