Description
Known for Innovation, Technology and Performance, the Star Manufacturing Company is among the largest manufacturers of heavy duty commercial cooking equipment in the world.
Star’s Holman Mini & Proveyor® ovens are designed to cook a variety of menu items such as fresh dough pizza, blanched pizza, subs, cookies, fish and more quickly and easily while preserving cooking space. Quartz infrared heaters provide faster, more consistent heating than traditional heating elements. Elements are located above and below conveyor belt allowing precise even heating of products.

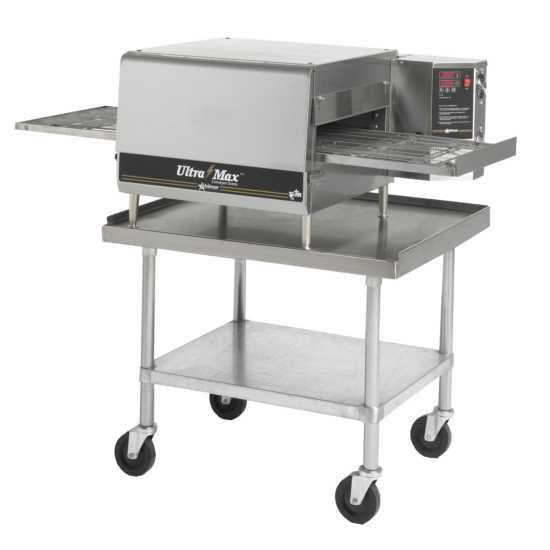

Star® Ultra-Max electric oven is constructed of stainless and aluminized steel. Oven is designed with stainless steel front panel and stainless steel clamps for access to cooking chamber, clean-ing and changing of nozzle plates. Unit is designed with state-of-the-art electronic controls set time, temperature, belt direction, Fahrenheit/Celsius conversion, manager lock-out, and diagnostic feature. Large LED display provides easy-toread panel for time, temperature and programming. Baking chamber is 24” long with 4” product opening. The stainless steel conveyor belt is 18” wide and 33” long with 9” exit shelf or 50” long with conveyor end stop. Conveyor belt is driven with a heavy-duty brushless DC reversible motor. Powerful steel centrifugal fan and motor deliver hot air to cooking ducts and motor has an Integrated fan to provide cool air for control area. 6,000 watt metal sheath element is standard. Unit is available in 208 volt and 240 volt models. 50 amp NEMA plug with 6’ oil resistant cord is standard. Stainless steel control box has hinged panel for easy access in single or double configu-rations.
Standard Features
- 18” wide stainless steel conveyor belt available in 33 or 50” lengths, 24” baking chamber and adjustable 1.5-4” product opening accommodate a variety of products
- Powerful 6000 watt metal sheath elements, conveyor belt motor and centrifugal fan motor provide years of reliable operation
- Easy-to-use electronic controls with LED display and six (6) factory presets for products from pizza to cookies • Removable front panel for easy cleaning the baking chamber and changing nozzle plates • Integrated fan pulls in outside air to cool control box keeping key components cooler resulting in longer life • 6-50 NEMA plug and a 6’ cord with oil resistant cover • Includes Factory Paid Start-up! Contact Star Manufacturing for details. Note: Start-up by factory approved service agent affects warranty policy
Product Specifications
| Manufacturer | Star |
|---|---|
| SKU | UM1850A |
| Condition | New |
| Length (in.) | 50.00 |
| Depth (in.) | 30.4 |
| Height (in.) | 20 |
| Volts | 208/240 |
| Hertz | 60 |
| Phase | 1 |
| Kilowatts | 6.4 |
| Amps | 31/27 |
| Nema Plug | 6-50P |
| Approval | UL |
| Deck Quantity | Single Deck |
