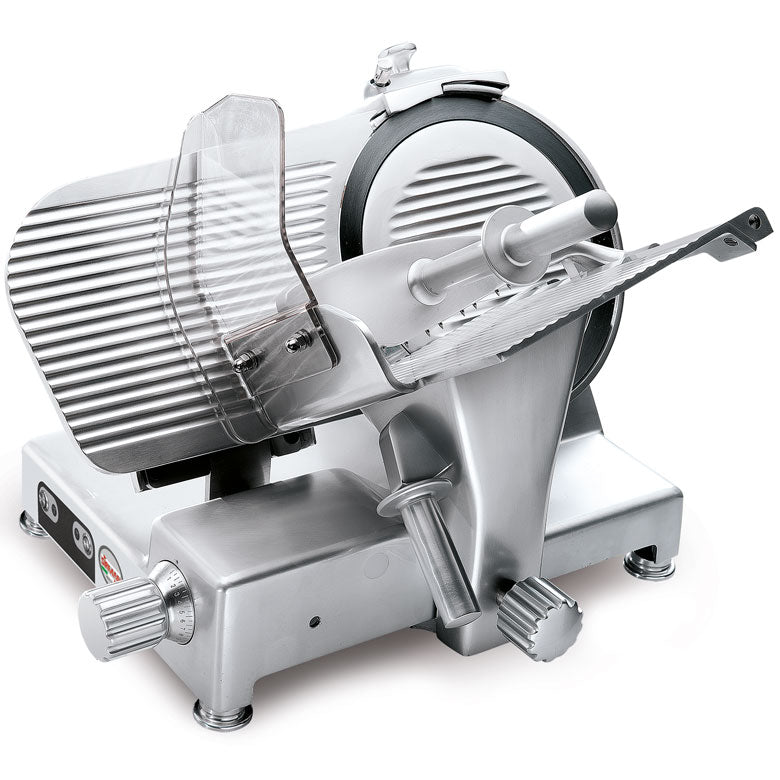

Sirman Slicers , model Palladio 300 Top :

- Rounded design, no sharp edges and visibile screws.

- Chrome plated and ground slide rod.

- Lapped cast iron slide rod bushing.

- Vulcanized rubber stops on carriage.

- Removable support cover for thickness gauge plate.

- Stainless steel slice deflector with bayonet fitting.

- Stainless steel screws and fittings.

- Enclosed and sealed belt pulley.

- 49,5 mm distance between blade and motor.

- Bottom cover.

- Changeover electronic circuit 110-220-380 V single and three phase.

- Built in sharpening tool with bottom protection.

- Standard blade removal tool.

- Aluminium knob.

- Aluminium telescopic feet with rubber base.

- Stainless steel pushbuttons with IP67 protection rating.

- Maintenance tool kit.

Optional Stonehenge:

- Cast aluminum alloy with special ceramic-teflon coating treatment

- Ideal for sticky products processing

- Excellent product gliding and easy to clean

- Highly resistant to acids and sanitizing chemicals

- Removable parts are dishwasher safe

- Aluminum-gray finish colour.

Available versions:

- Stonehenge: table, blade cover, carriage, end weight

- Stonehenge Plus: base, table, knife rim guard, blade cover, carriage, end weight, sharpener housing

Model	PALLADIO 300 TOP
ø Blade	mm 300 - inch. 12
Motor	watt 275 - Hp 0,37
Cut thickness	mm 23
Run of carriage	mm 310
Hopper	mm 305x270
A	mm 465
B	mm 340
C	mm 615
D	mm 547
E	mm 465
F	mm 710
G	mm 545
L	mm 600
X	mm 270
Y	mm 190
H	mm 240
W	mm 220
Net weight	kg 35
Shipping	mm 760x640x700
Gross weight	kg 44
HS-CODE	84385000
